Loading remote video stored in Azure blob storage into a floating gaze activated video player in a Mixed Reality app

5 minute read

Intro

The title of this blog post kind of gives away that this is actually two blog post in one:

  • How to prepare and load videos into Azure
  • How to load these videos back from Azure, and show these in a floating video player that is activated upon looked at.

The basic idea

The UI to demo loading and playing the video is a simple plane that gets a ‘MovieTexture’ applied to it. When you look at the plane (i.e. the gaze strikes the Plane), MovieTexture’s “Play” method is called, and the video starts playing. When you don’t look at it for like three seconds, the MovieTexture’s “Pause” method is called. It’s not rocket science.

Two post ago, I introduced a BaseMediaLoader a as simple base class for downloading media. We are going to re-use that in this post, as loading video – as you will see – is not that different from loading audio.

Prepare and upload the video

If you have read my post about loading audio you might have guessed – you can’t just upload an MP4 file to a blob storage, download and play it. Unity seems to have a preference for off-center open source formats. You will need to convert you movie to the OggTheora and you can do this with the command line tool “ffmpeg”. The documentation on it is not very clear, and default conversion yields a very low quality movie (think early years YouTube). I have found the following parameters give a quite reasonable conversion result:

ffmpeg.exe -i .\Fireworks.mp4 -q:v 8 fireworks.ogv

-q:v 8 gives a nice video quality. Also, the original 121605 kb movie is compressed to about 40000 kb. The resulting ogv need to be uploaded to an Azure blob storage. I used the Storage Explorer for that. That also makes it easy to get a shared access signature url.

Video player components

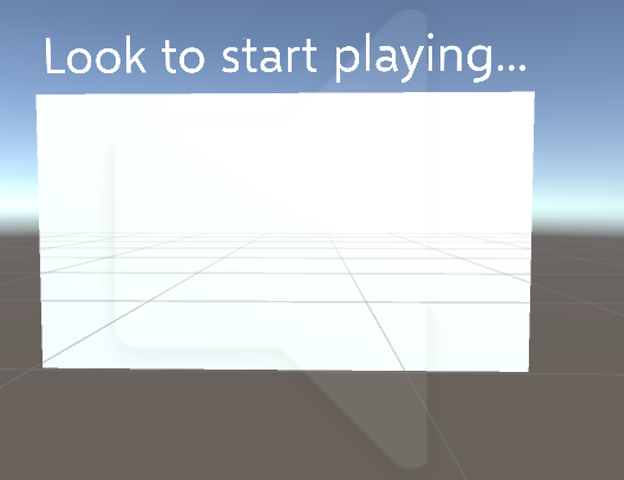

The video player itself is pretty simple – a Plane to display the movie on, a Text to tell the user to start playing it by looking at the Plane, and an AudioSource you can just about see in this image blow, depicted by a very vague loudspeaker icon



imageNote the video player is about 3 meters from the user, and a bit off-center to the left – preventing it from auto starting immediately, which it would do if it would appear right ahead. The video plane is rotated 90/90/270° to make it appear upright with the right direction to the user.

The VideoPlayer script

The  VideoPlayer script is actually doing all the work – downloading the video, playing it when gaze hits, and pausing the playback after a timeout of 2 seconds (‘Focus Lost Timeout’). It start pretty simple:

using System.Collections;
using HoloToolkit.Unity.InputModule;
using UnityEngine;
using UnityEngine.Networking;

public class VideoPlayer : BaseMediaLoader, IFocusable
{
    public GameObject VideoPlane;

    public AudioSource Audio;

    public GameObject LookText;

    public float FocusLostTimeout = 2f;

    private MovieTexture _movieTexture;

    private bool _isFocusExit;

    protected void Start()
    {
        VideoPlane.SetActive(false);
        LookText.SetActive(false);
    }
}

Notice all components are explicitly defined, that is – although they are within one prefab, you still have to drag the Plane, the Text and the AudioSource into the script’s fields. Initially it turns off everything – if there’s nothing downloaded (yet), show nothing. If you are on a slow network, you will see the player disappear for a while, then reappear.

The most important part of this script consist out of this two methods:

protected override IEnumerator StartLoadMedia()
{
    VideoPlane.SetActive(false);
    LookText.SetActive(false);
    yield return LoadMediaFromUrl(MediaUrl);
}

private IEnumerator LoadMediaFromUrl(string url)
{
    var handler = new DownloadHandlerMovieTexture();

    yield return ExecuteRequest(url, handler);

    _movieTexture = handler.movieTexture;
    _movieTexture.loop = true;
    Audio.loop = true;

    VideoPlane.GetComponent<Renderer>().material.mainTexture = _movieTexture;
    Audio.clip = handler.movieTexture.audioClip;
    VideoPlane.SetActive(true);
    LookText.SetActive(true);
}

Remember, from BaseMediaLoader, that StartLoadMedia is called as soon as MediaUrl changes. That turns off the UI again (in case it was already turned on because a different file was loaded previously). Then we need an DownloadHandlerMovieTexture. I think the person who came up with the DownloaderScheme should be awarded for an originality award ;)

Then we set both the loop property for both the movie texture and the AudioSource to true, and after that we apply the movie texture to the Videoplane's Renderer material texture so it will indeed show the movie.  Since that will only play a silent movie, we need to extract the movie texture's audioClip property value and put that in our audio source, and both make the plane and the text visible, inviting the user to have a look

Then we have these two simple methods to actually start and pause playing. Notice you have to start call the movie texture's Play method and the AudioSource's Play method, but for pausing it's enough to call just the movieTexture's Play. One of those weird Unity idiosyncrasies.

private void StartPlaying()
{
    if (_movieTexture == null)
    {
        return;
    }
    _isFocusExit = false;
    if (!_movieTexture.isPlaying)
    {
        LookText.SetActive(false);
        _movieTexture.Play();
        Audio.Play();
    }
}

private void PausePlaying()
{
    if (_movieTexture == null)
    {
        return;
    }
    LookText.SetActive(true);
    _movieTexture.Pause();
}

Notice the setting of _onFocusExit to false when the StartPlaying. We need that later. Finally, the methods that actually are fired when you are looking at or away from the plane, as defined by IFocusable

public void OnFocusEnter()
{
   StartPlaying();
}

public void OnFocusExit()
{
    _isFocusExit = true;
    StartCoroutine(PausePlayingAfterTimeout());
}

IEnumerator PausePlayingAfterTimeout()
{
    yield return new WaitForSeconds(FocusLostTimeout);
    if (_isFocusExit)
    {
        PausePlaying();
    }
}

If the user stops looking at the plane, _onFocusExit is sets to true and a coroutine starts that first waits for the defined time. If that time has passed and the user still does not look at the plane, the video play will actually be paused. This way you prevent small head movements, that make the gaze cursor wander off the plane for a short period of time, will make the movie stop and start repeatedly - which is a bad user experience.

No controls?

The floating audio player I described earlier has a fancy slider that showed progress and made it possible to jump to any piece of the audio. Unfortunately, a movie texture does not support a time property that you can get and set to random access parts of the movie, and jump to a specific point. You can only move forward, and only by setting the loop property to true you actually end up at the start again, because moving to start does not work either. I don't know why this is, but that's the way it seems to be.

Conclusion

Showing video is almost a easy as playing audio, and in many ways are similar. The default Unity capabilities allow only for a bit limited control, but it's a nice way to - for instance - show instructional videos. Be aware playing videos in a resource-constricted device (read: HoloLens) might ask for a lot of resources. Consider smaller low-res videos is this case. Testing is always key.

Demo project, containing more stuff by the way, can be found here
